VMC 855 CNC Vertical Machining Center https://www.josencnc.com/VMC-855-CNC-Vertical-Machining-Center.html The machine is suitable for communication, medical machinery, auto and locomotive parts, etc. The motor and screw are designed with direct drive, which can greatly save non-machining time. The spindle adopts short nose design, which has better strong rigidity. The standard 24 disc type tool changer implements automatic tool change, which saves the time of tool change process. Travel X-axis travel mm 800 Y-axis travel mm 500 Z-axis travel mm 550 Worktable size Working table size (X*Y) mm 1000x500 Max.loading capacity of working table kg 600 Table T-slot size (width * number of slots * spacing) number 18x5x80 Spindle Spindle speed rpm 12000 Spindle drive form Direct driven Spindle power kW 7.5/11 Spindle bore specification BT40 Distance from spindle to table surface mm 120-670 Spindle feed Rapid feed rate(X,Y,Z) m/min 48/48/48 Cutting feed rate mm/min 10000 Tool magazine(Optional) Tool magazine capacity arm type 24 Tool diameter/adjacent tool space mm Φ80/Φ150 Max. Tool length mm 300 Max. Tool weight kg 8 Accuracy Positioning accuracy mm ±0.005 Reproduction accuracy mm ±0.003 Others Controller kg/cm² 0i-MF/M80 Air pressure demand kg/cm2 6 Power demand kVA 25 Machine weight T 5

DK7735 EDM wire cutting machine https://www.ruitewedm.com/DK7735-taper.html Worktable Travel(Mm):350(320)*450(400) Worktable Size(Mm):730*490 Max. Cutting Thickness(Mm):500 Max. Load(Kg):300 Dimensions(Mm):1400*1100*1600 Weight(Kg):1100

Dissolvable Rubber https://www.eastnewmaterial.com/Dissolvable-Rubbers.html Independent research and development, filling the blank of domestic soluble plastic cartridges, with low cost and stable product performance. Our company's WS soluble series is divided into five grades according to different melting temperatures: WS30, WS40, WS50, WS60, WS70, WS90, WS130, and WS140. Features: The sol cartridges are divided into compression type and expansion type, which are used in unconventional oil and gas fields, multi-stage perforated bridge plug completions, ultra-deep wells, remote development wells, and depleted reservoirs. The rubber cartridge can be dissolved in clear water at a certain temperature, and the higher the temperature, the faster the dissolution rate, which fills the blank of domestic soluble rubber cartridges and reduces production costs.

Vertical and horizontal CNC rotary table GTR125 https://www.qkznmach.com/GTR125.html Disk diameter:φ125mm Center height:110mm Center aperture:φ40H7mm Through aperture:φ30mm T-slot width:12H7mm Positioning key width:14h7mm Maximum speed: 83r.p.m Minimum setting unit: 0.001deg Cutting accuracy sec:±20sec Repeatability :6sec Maximum cutting torque (brake):100Nm

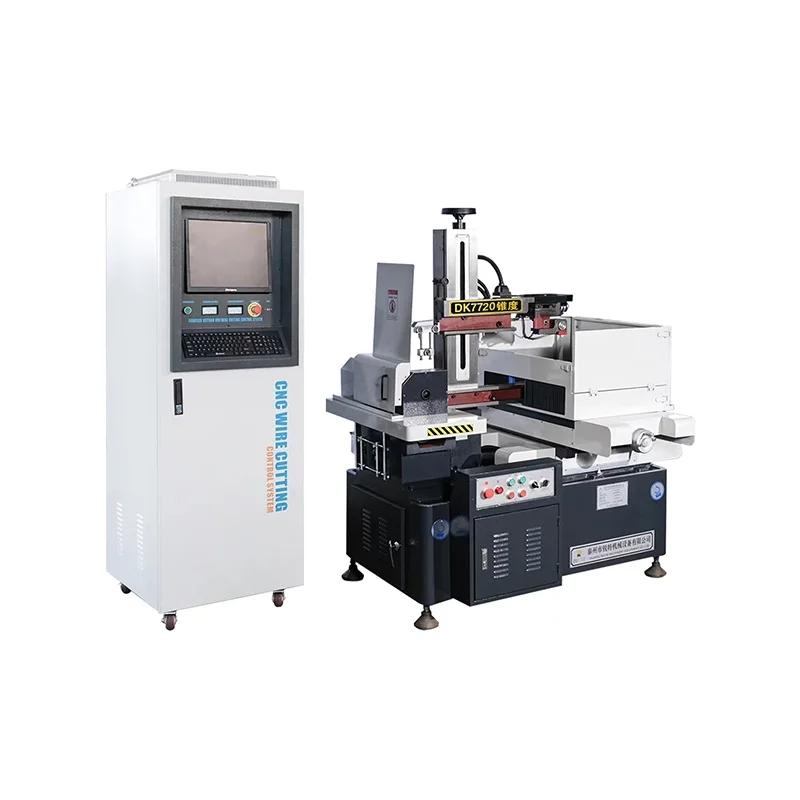

DK7720 EDM wire cutting machine https://www.ruitewedm.com/DK7720-taper.html Taizhou Ruite Machinery Equipment Co., Ltd. produces whole series of DK77 CNC edm wire cutting machines,which adopts high precision V-shaped guide rail(Linear guide rail optional) and P3-grade high precison ball screw. Standard maximum cutting taper:±6°/80mm;(±15°,±30°,±45° are optional) Precision ≤ 0.02mm,according to GB7926-2005 standard;(If linear guide equipped, the precision can reach 0.01mm) Best surface roughness ≤ Ra2.5μm(single-cut),Ra1.5μm(multi-cut); Molybdenum wire diameter:0.1-0.2mm; Max. cutting speed≥120mm^2/min; Voltage:3 phase 380V(single phase 220V,3 phase 220V or other voltage can be customized),Power:1.5KW; Working fluid:Water-based emulsion Model:DK7720 Worktable Travel(Mm):200*250 Worktable Size(Mm):490*380 Max. Cutting Thickness(Mm):200 Max. Load(Kg):100 Dimensions(Mm):1200*900*1300 Weight(Kg):800
